How do I create a zigzag curved line using custom painter?

I am trying to currently create a zig zag curved line using flutter and place item on top of it.

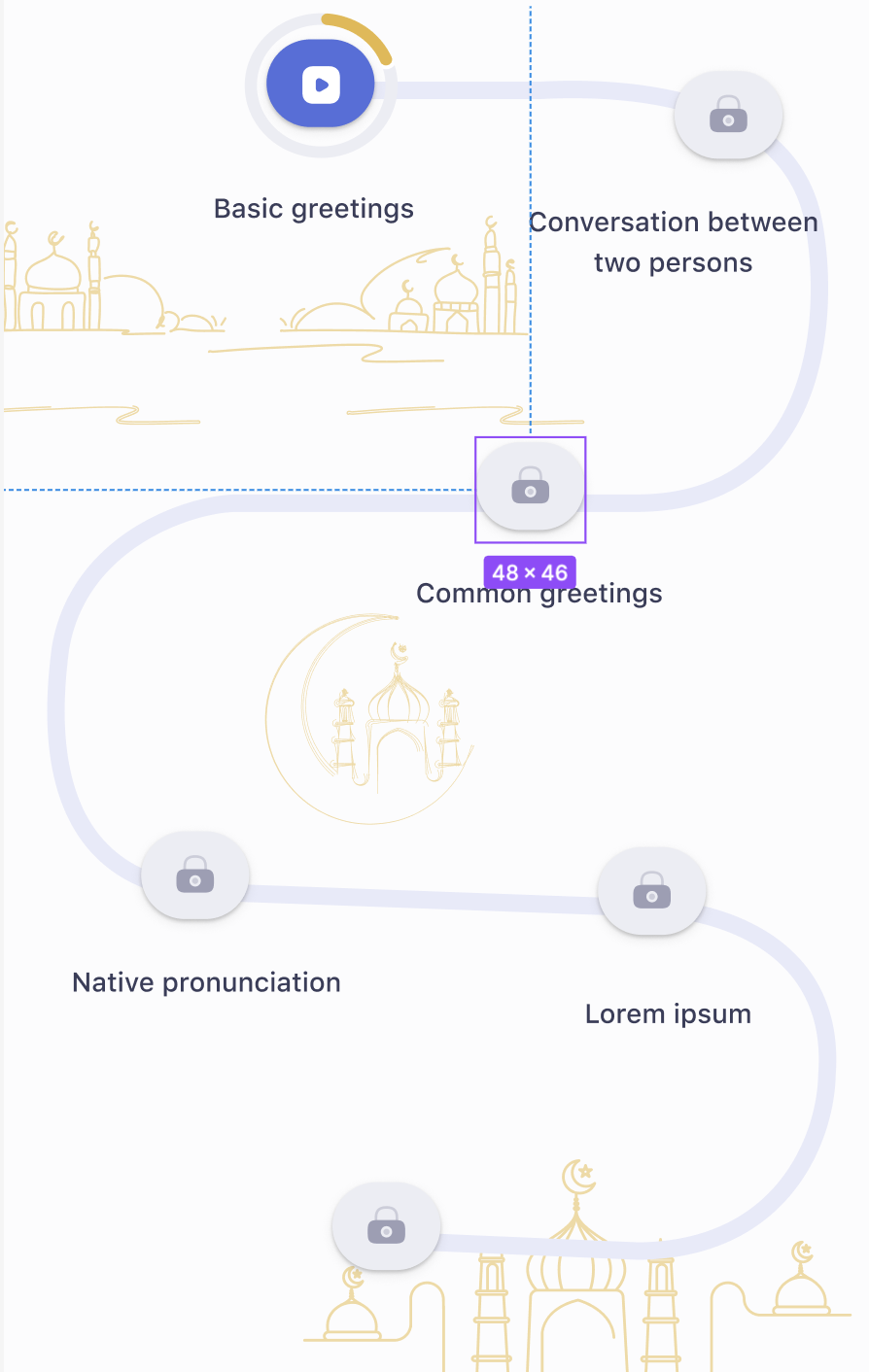

I know that I will have create custom render objects for this. I can work with renderboxes but I am having a hard time drawing the line. I have attached an image of what I am trying to create.

You don’t need a custom render object, that’s a little overkill. CustomPainter + some math should work well enough.

1 Like

yes we make zigzaf curved line aslo with coustom paint

class ZigZagLineWithItems extends StatelessWidget {
  final double waveHeight = 40;
  final double waveLength = 100;
  final int waveCount = 5;

  @override
  Widget build(BuildContext context) {
    final double totalWidth = waveCount * waveLength;

    return SizedBox(
      width: totalWidth,
      height: 200,
      child: Stack(
        children: [
          // Wave line
          CustomPaint(
            size: Size(totalWidth, 200),
            painter: ZigZagPainter(
              waveHeight: waveHeight,
              waveLength: waveLength,
              waveCount: waveCount,
            ),
          ),

          // Items placed on top of wave peaks
          for (int i = 0; i < waveCount; i++)
            Positioned(
              left: i * waveLength + waveLength / 2 - 15,
              top: 80 - waveHeight - 30, // Adjust Y position as needed
              child: CircleAvatar(
                radius: 15,
                backgroundColor: Colors.deepPurple,
                child: Text('${i + 1}', style: TextStyle(color: Colors.white)),
              ),
            ),
        ],
      ),
    );
  }
}

class ZigZagPainter extends CustomPainter {
  final double waveHeight;
  final double waveLength;
  final int waveCount;

  ZigZagPainter({
    required this.waveHeight,
    required this.waveLength,
    required this.waveCount,
  });

  @override
  void paint(Canvas canvas, Size size) {
    final Paint paint = Paint()
      ..color = Colors.deepPurple
      ..strokeWidth = 3
      ..style = PaintingStyle.stroke;

    final Path path = Path();
    path.moveTo(0, 80); // Starting Y position

    for (int i = 0; i < waveCount; i++) {
      double startX = i * waveLength;
      double controlX = startX + waveLength / 2;
      double endX = startX + waveLength;

      path.quadraticBezierTo(
        controlX, i % 2 == 0 ? 80 - waveHeight : 80 + waveHeight,
        endX, 80,
      );
    }

    canvas.drawPath(path, paint);
  }

  @override
  bool shouldRepaint(ZigZagPainter oldDelegate) => false;
}
