Grid layout package

[scalz]

Hi,

I’m quite excited to share something I’ve been working on.
This is a grid layout package for building dashboards.

Context:
I tried some existing grid packages but never been completely satisfied:

• some have poor performance (no itembuilder etc), or
• missing features (drag/drop, smart rearranging items)
• require additional packages to add features like drag/drop for instance.
• no updates
• frustrating to see JS ecosystem with full featured grid packages although some of them are also in maintenance mode ^^

I’ve been using the “dashboard” package for a while, it was convenient but no more updates, had to tweak its code, miss features too.

So, I created my own, from scratch, all batteries included.

Description:

Provides a robust foundation for building dynamic, user-configurable layouts, like analytics dashboards, IoT control panels, project management tools (kanban..), or any application that requires a draggable and resizable grid layout.

Features:

• Performant: Built on Flutter’s Sliver protocol with smart caching. It only renders visible items and prevents unnecessary rebuilds of children during drag/resize operations.
• Fully Customizable: Control the number of columns, aspect ratio, spacing, grid and handles style. Items can be draggable, resizable, and static.
• Horizontal & Vertical Layouts: Supports both vertical (default) and horizontal scrolling directions.
• Smart Collision Detection: Choose your desired behavior:
  • Push: Items push each other out of the way to avoid overlap.
  • Push or Shrink: Items can be shrinked or pushed when resizing a neighbour item. In Shrink mode, if neighbour item has not enough space, then it will be pushed.
• Compaction: Choose your desired behavior:
  • None: Free positioning. Items are not compacted.
  • Vertical: Items are compacted to top.
  • Horizontal: Items are compacted to left.
• Built-in Trash: Easy-to-implement drag-to-delete functionality.
• Custom Feedback: Customize the appearance of items while they are being dragged. Use onInteractionStart callback for haptic feedback…
• Drag From Outside: Drop new items from external sources directly into the grid with auto-scrolling support.
• Guidance: Optional contextual tooltips/guidance messages.

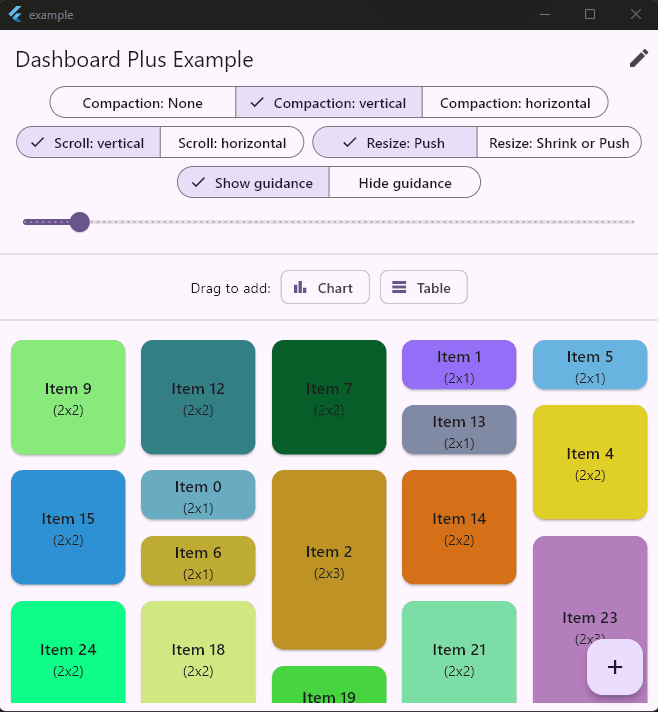

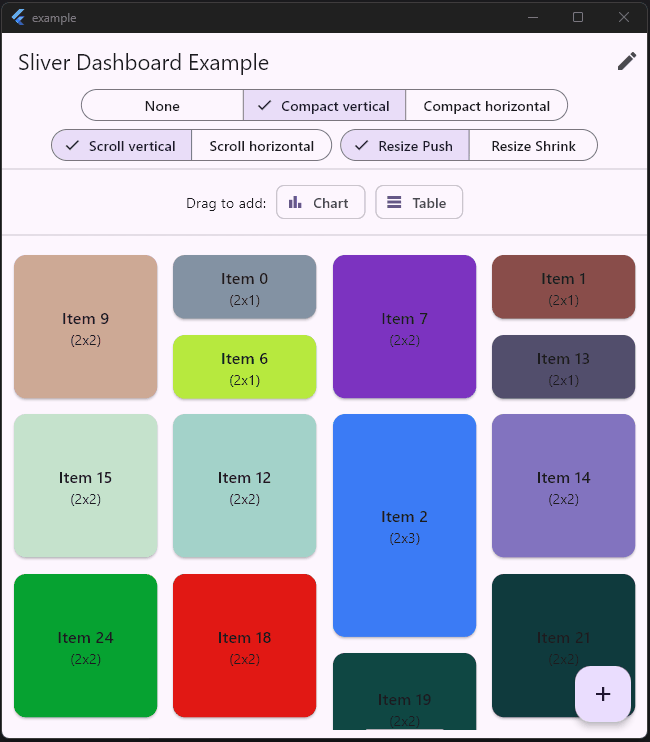

Quick demo (video size is limited to show all features)

I’ve been hesitating to share it, because I miss time for helping others, but I’ll do it with the hope that some people will be interested to contribute

I’m planning to publish it this week I think. I just need to polish one last usecase (drop an item from the dashboard to a special “group” item with its own dashboard (like a folder) without the group item being pushed when I hover it while dragging.
I also need to find a better name, because this is not a fork and I’m not fan of the ‘_plus’ extension.
Documentation, tests etc, are ready.

I’ll update here once it’s available publicly.

[evaluator118]

Someone will eventually be a dumbass and ask you why this package is better than X or Y.

On a totally non-related question: How this package is different from flutter_layout_grid | Flutter package?

[scalz]

I made it for the reasons I explained above, by testing packages, what I meant may become more obvious probably. I’m waiting for someone to show me a demo of a pub dev package with same features I showed in my demo (if there is one, I would use it and not release mine->no maintenance burden).
I’m not planning to make a comparison table, don’t have time to debate with others, I’m just gonna share my work you know, fix what I need, and if some people contribute then I might be more motivated to help.
I don’t even think that I will show it on reddit. I hesitated to show it here but this seems more peaceful, so here I am

But to answer to your question.
if you check flutter_layout_grid:

• it doesn’t have an itemBuilder, instead it uses a List of Widget
• not based on sliver (no reference to a CustomScrollview, sliver, or a SliverMultiBoxAdaptorWidget).
• opened issues vs features I mentioned in my description

Atm my implementation, in the Dashboard widget, is using internally a CustomScrollView and SliverMultiBoxAdaptorWidget (for custom sliver). I plan to add another widget “SliverDashboard” (I have a poc), to make it composable in your CustomScrollView with other slivers like SliverAppBar, SliverList, or even multiple SliverDashboard why not.

I hope this answers your question.

[scalz]

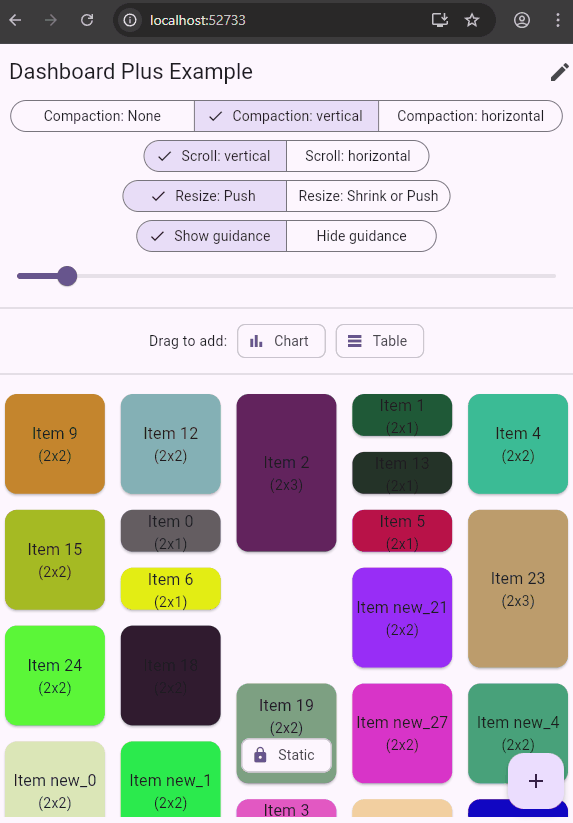

I didn’t even try it on web..
+600 simple items
flutter run -d chrome --release

[scalz]

And voilà, I just published my package. My first contribution to the community
Here is the link for those who are interested. Feel free to contribute.

sliver_dashboard | Flutter package

[Nacho]

Awesome work, thanks for sharing!

[scalz]

thank you. I’m glad if it can help others.

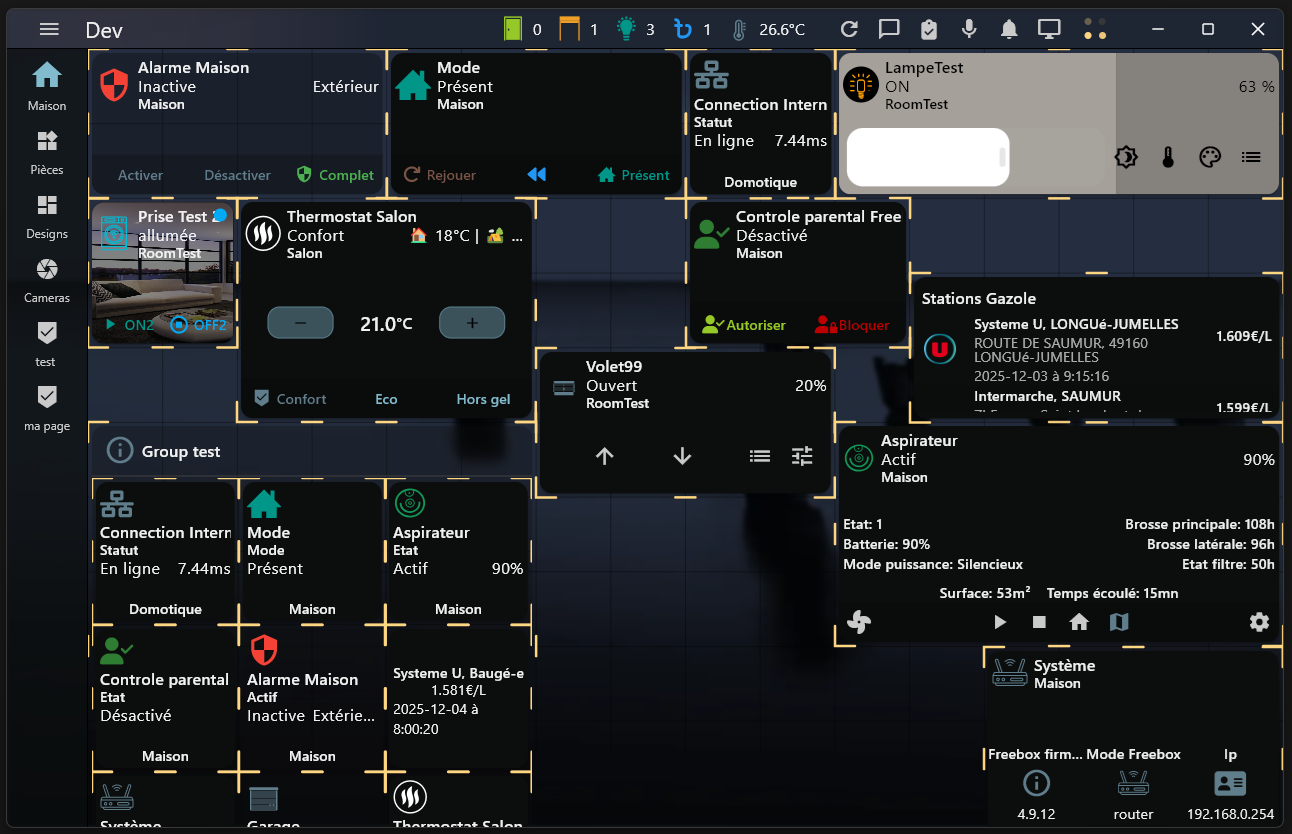

An example of integration in app (for my smarthome):

Using Flutter since 2019, and love it. Flutter rocks

[scalz]

And I’m currently working on a new widget for the package, to complete my roadmap:
“SliverDashboard” to compose seamlessly with SliverAppBar, SliverList..
I hope to get it right

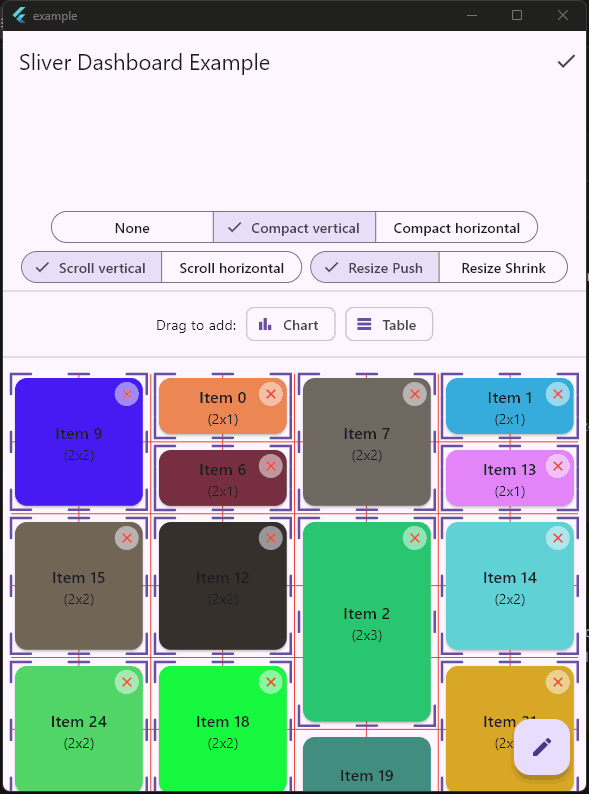

So far, SliverAppBar + SliverDashboard + SliverList:

[mihalycsaba]

Off topic, but how did you get the icons on the title bar? The whole window is rendered by flutter and you disabled the window decorations somehow? gtk has similar title bar icons

[scalz]

Indeed. window_manager, hidden title bar, custom Flutter title bar (can’t wait for stable multi window support ^^).

[scalz]

Hi there.

I just released v0.3, which allows to compose a dashboard with other slivers.

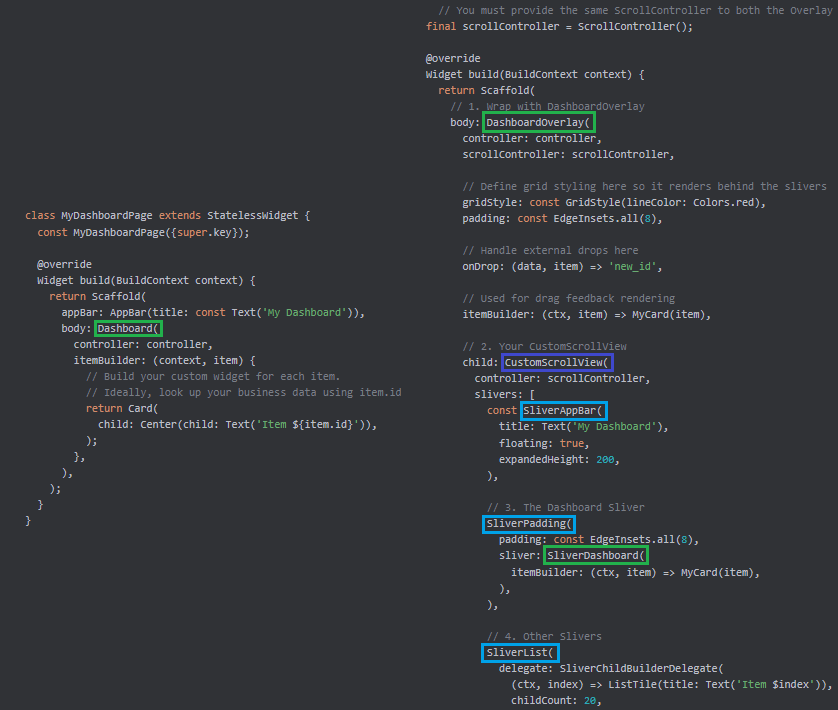

Two ways to use this package now:

• Dashboard widget, which internally uses its own CustomScrollView and sliver.
• Direct composition with other slivers using DashboardOverlay and SliverDashboard (see updated documentation).

I’ll probably make few minor API changes to the latter case, for better DX.

[scalz]

It’s me again

Accessibility in progress.

• Keyboard navigation support (Tab, Arrows, Space to arm/disarm move)
• TalkBack/VoiceOver.

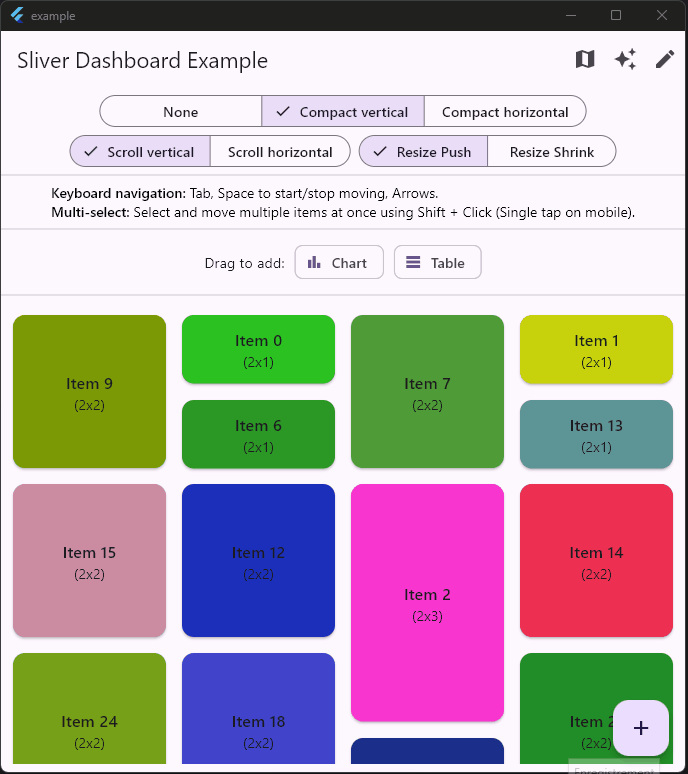

Looks good so far. Quick demo:

I’m gonna add more stuff to the roadmap, I have some other sexy ideas

[scalz]

New available features today:

• Accessibility: Screen reader support and keyboard navigation with configurable keys

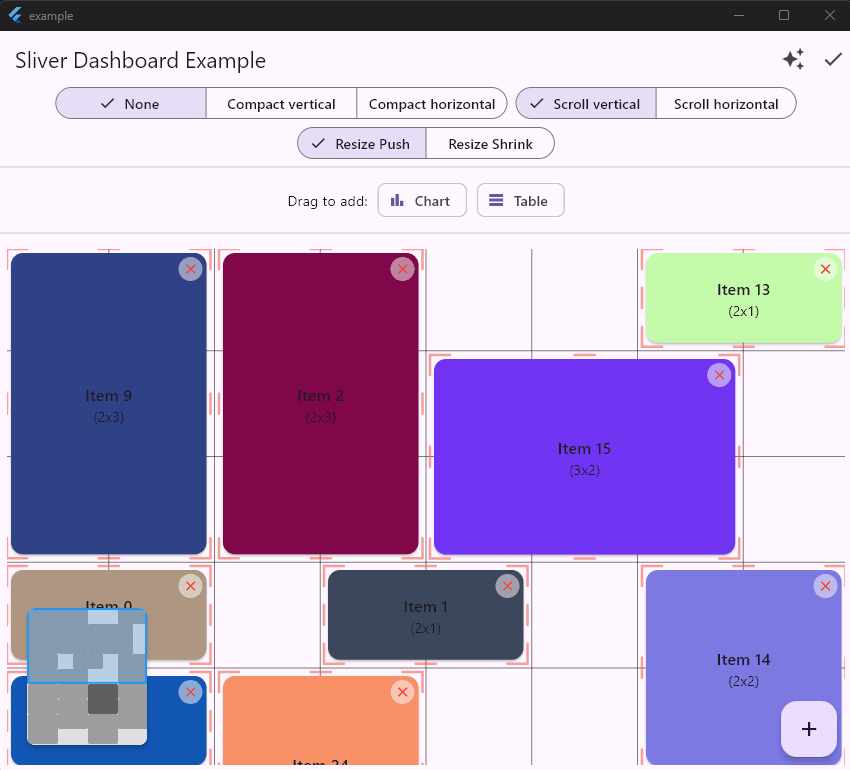

• Mini-map: Display and navigate via a minimap.
• Added a method for optimizing layout (basic bin packing).

[scalz]

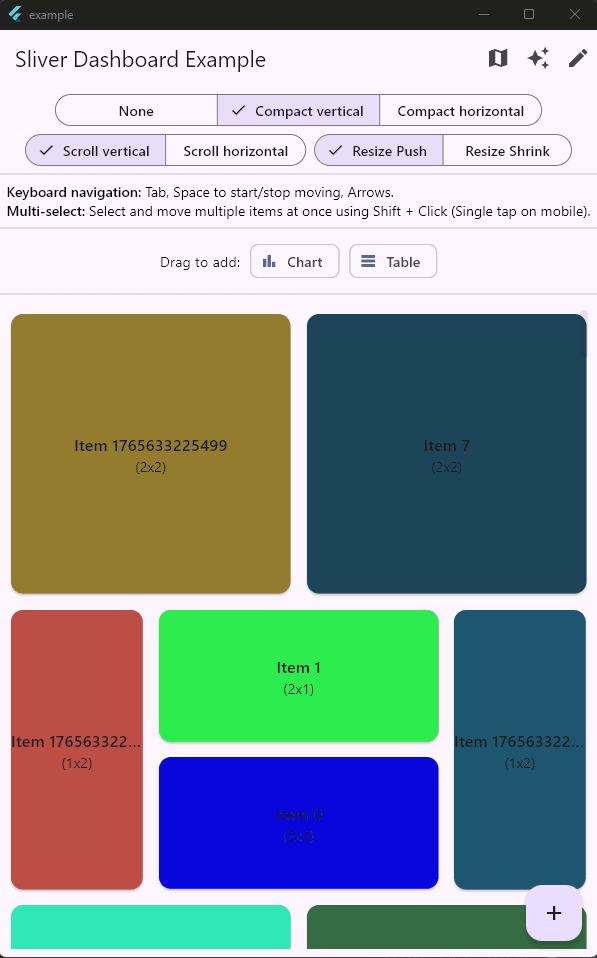

Multi-select drag and delete

[scalz]

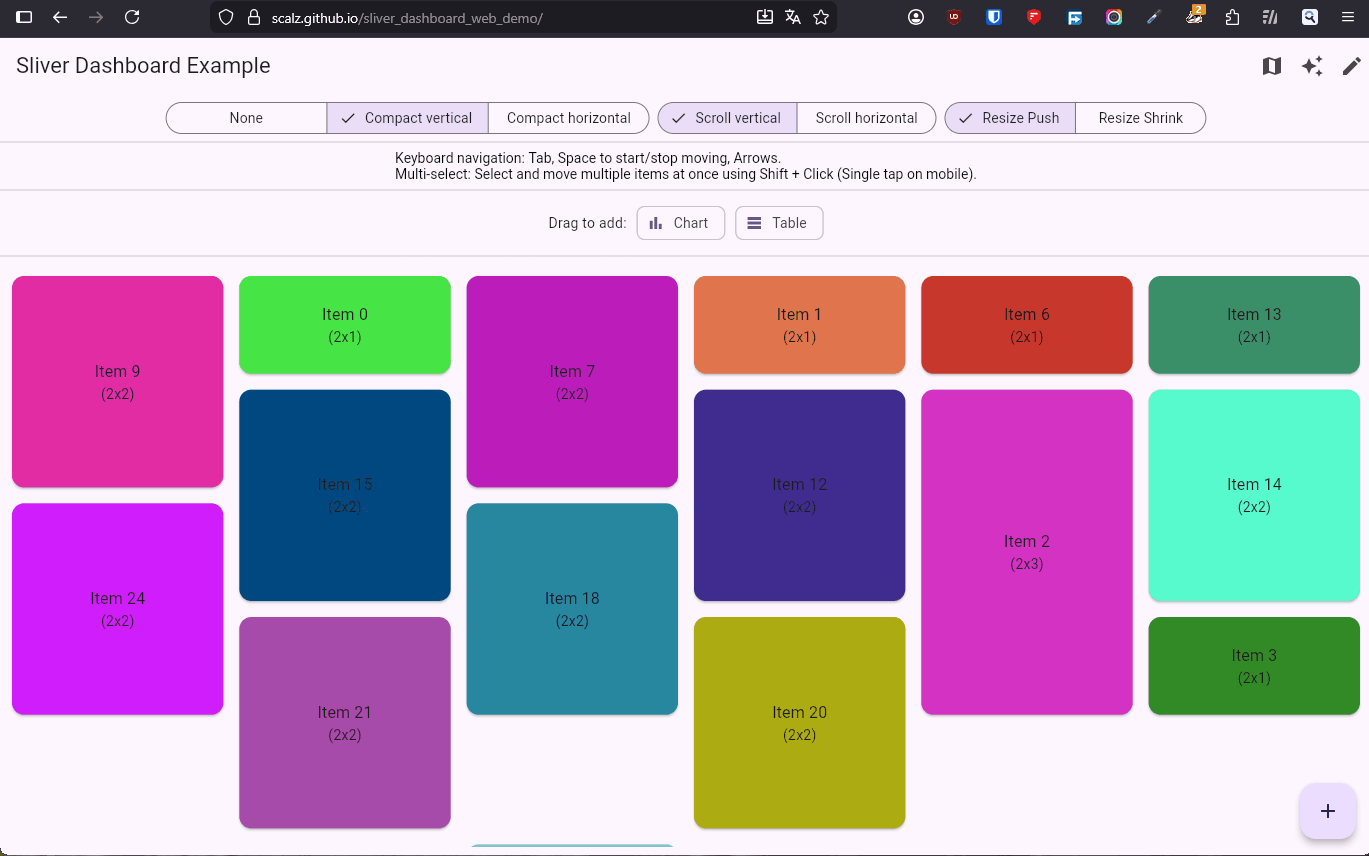

I added a web demo, that you can try here: example

[Nacho]

I see no option to scroll horizontally and vertically - is it possible to implement?

[scalz]

Hi.

Scrolling direction is already implemented (and available on pub dev).
Take a look at options on top. In this example, I just don’t recalculate positions when switching direction. This is working as you can see below.

Choose compaction “none”, if you want to use free positioning.

Two remaining features to do in my roadmap + a final review, and it should be ok for 1.0

Edit: aaah! I misread your questions vertical AND horizontal. Indeed for the moment, it’s one or the other. Maybe in future. I dont’ need it but I will think about it (if someone is interested to contribute). What’s your usecase? I’ve never had the use for a dashboard with both scrolling enabled so far, but why not.

[mihalycsaba]

for example listview has scrollbar on desktop(janky af)

but I saw people wanting scrollbars, once I even tried to come up with some workaround for a stackoverflow question.

edit: found it https://stackoverflow.com/a/79643877/9682338

edit: I also misread, no one mentioned scrollbars, nvm.

[scalz]

you can show scrollbar or a map, it’s customizable (showScrollbar property). I’ll enable it in example.

Demo of smooth scrolling via scrollbar on desktop, in debug mode:

[mihalycsaba]

I didn’t try it, I’m just cheering from the sideline, it looks awesome. Looks like the scrolling is even better than the one with ListView. That one just jumps around, didn’t even know Listview had a scrollbar until I tried the app on windows and linux.

I just don’t know where can I use a Grid like this, maybe I will use it as a ListView , because that thing has all kinds of weird issues.
